Quick answer: Teach GCSE chemistry in Manchester by linking bonding and structure to graphene, first isolated at the University of Manchester in 2004. Build from ionic, covalent and metallic bonding to giant structures, then use surface area to volume ratio to explain nanoparticles. The Nanochemistry unit extends this into nanomaterials and real applications.
Few cities have a chemistry story as teachable as Manchester's. Graphene was first isolated at the University of Manchester in 2004 by Andre Geim and Konstantin Novoselov, and the work earned the Nobel Prize in Physics in 2010. For Year 10 and Year 11 pupils, that gives bonding and structure a local reason to matter.
GCSE chemistry in England is regulated by Ofqual and examined at the end of Year 11. Bonding, structure and the properties of matter sit near the start of most courses, and nanoparticles usually appear alongside them. Teaching the two together saves time and makes the nanoscience feel less like an add-on.
What do GCSE pupils need to know about bonding and nanoscience?
Pupils need to connect the type of bonding in a substance to its properties, then explain why very small particles behave differently from bulk material. The core knowledge fits in a short list.
- Ionic, covalent and metallic bonding, and how each is represented in diagrams
- Simple molecules versus giant covalent structures such as diamond, graphite and graphene
- Why intermolecular forces, not covalent bonds, decide the boiling point of simple molecules
- The nanometre scale: 1 nm is one billionth of a metre, and nanoparticles are roughly 1 to 100 nm across
- Surface area to volume ratio and why it rises sharply as particles shrink
- Uses and possible risks of nanoparticles in medicine, electronics and consumer products
What is a good lesson sequence for bonding, structure and nanoparticles?
- Recap atoms and electrons, then model ionic bonding with sodium chloride.
- Model covalent bonding with water, methane and hydrogen chloride using dot and cross diagrams.
- Compare simple molecules with giant covalent structures; build diamond and graphite with molecular model kits.
- Introduce graphene as a single layer of graphite and ask pupils to predict its strength and conductivity.
- Calculate surface area to volume ratios for cubes of side 1 cm, 1 mm and 0.1 mm.
- Explain why nanoparticles can act as effective catalysts and how that links to surface area.
- Research task: pupils summarise one medical or electronic use of nanomaterials and one possible risk.
- Exam-style practice: a six-mark question comparing diamond, graphite and graphene.
The ratio calculation in step 5 is worth doing by hand. A cube of side 1 cm has a surface area of 6 cm² and a volume of 1 cm³, giving a ratio of 6:1; at side 1 mm (0.1 cm) the ratio is 60:1, and at 0.1 mm it is 600:1. Pupils see the tenfold jump for themselves.

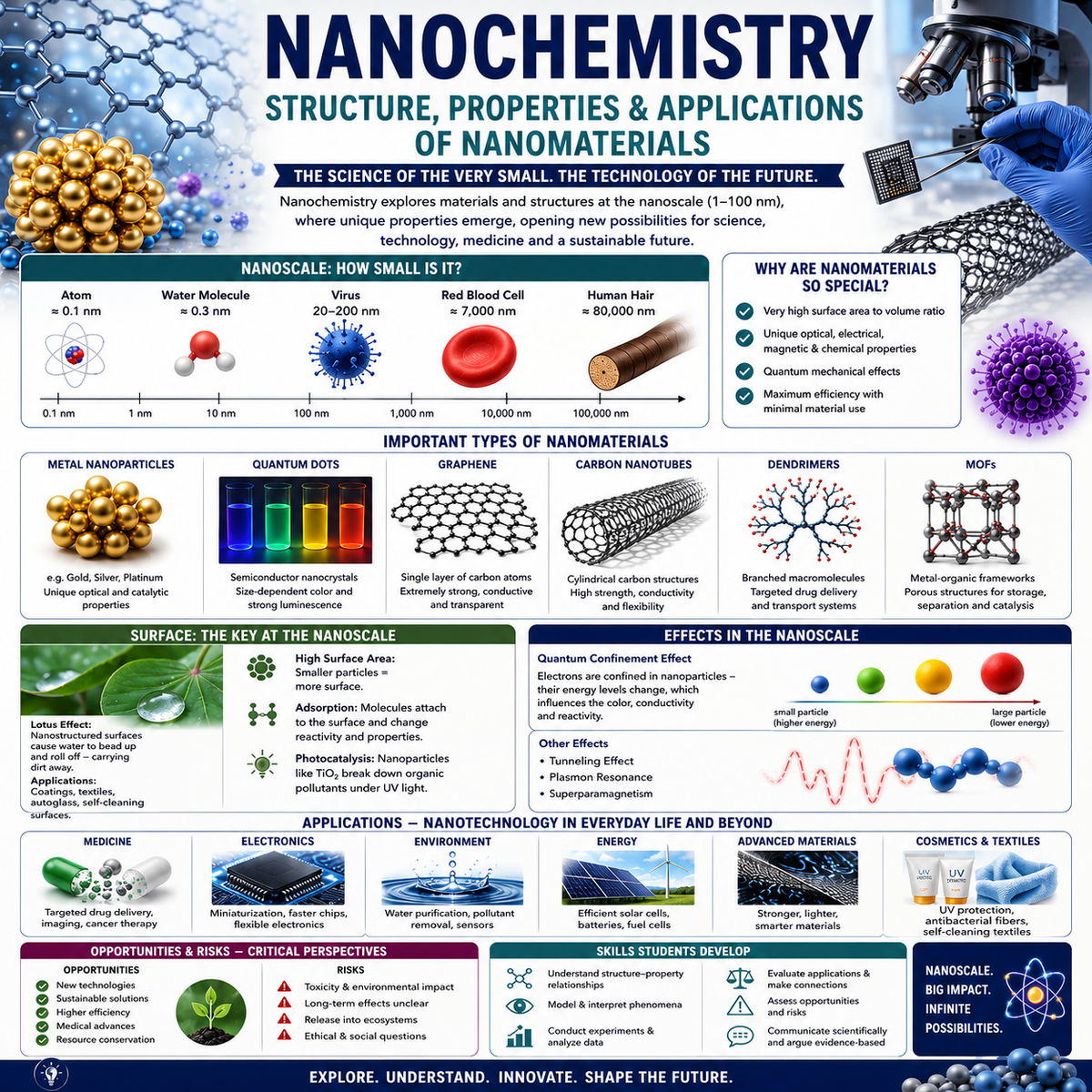

The Nanochemistry: Nanomaterials, Surface Properties & Modern Applications unit picks up from step 4, showing how surface area, atomic structure and quantum effects change colour, conductivity, strength and reactivity at the nanoscale.
How can I use Manchester's graphene story in class?
Open the unit with a single fact: in 2004, researchers at the University of Manchester isolated a sheet of carbon one atom thick. Ask pupils what they would expect such a sheet to be like, then return to their predictions after the lesson on giant covalent structures.
A timeline also works well. Pupils place the isolation of graphene in 2004 and the Nobel Prize in 2010 alongside the Manchester 'Baby' computer of 1948, then write two sentences on why a city might become known for science. The Manchester teaching resources page lists other units that use these local links.
Which misconceptions come up most often?
- "Boiling water breaks the bonds in H₂O." Boiling overcomes forces between molecules; the covalent bonds stay intact.
- "Graphite conducts because it is a metal." It conducts because each carbon has one delocalised electron.
- "Nanoparticles are just very small molecules." Many contain thousands of atoms; what matters is their size and huge surface area.
- "Ionic compounds conduct as solids." They conduct only when molten or dissolved, when ions are free to move.
Address the first misconception with a simple comparison: water boils at 100 °C while hydrogen sulfide, a heavier molecule, is a gas at room temperature. Pupils have to explain the difference with intermolecular forces.
How do I differentiate for Foundation and Higher tier pupils?
Keep the same core content for all pupils, but change the demand of the explanation. Foundation tier pupils should link one property to one structural feature in a clear sentence. Higher tier pupils should compare three structures and justify which suits a given use.
For EAL pupils, pre-teach structure, delocalised, lattice, intermolecular and nanoparticle with labelled diagrams, and give sentence starters such as "Graphite conducts electricity because...".
Which resources support this GCSE topic?
For the intermolecular forces lessons, the Intermolecular & Intramolecular Forces unit explains how bonding within particles differs from forces between molecules and uses them to explain boiling points, solubility and conductivity. For pupils heading towards A level, the Chemistry of Dyes unit shows how molecular structure decides colour. You will find further units in the high school science collection.
Chemistry in Manchester: at a glance
| Year band | GCSE, Years 10–11 (the shop lists these units as Grades 9–12, roughly Years 10–13) |
|---|---|
| Framework | GCSE chemistry, regulated by Ofqual; exams at the end of Year 11 |
| Suggested length | 8–10 lessons for bonding, structure and nanoparticles |
| Lead resource | Nanochemistry unit |
| Local hook | Graphene, first isolated at the University of Manchester in 2004 (Nobel Prize 2010) |
Frequently asked questions
Where does graphene fit in GCSE chemistry?
Graphene fits in the topic on bonding, structure and the properties of carbon. Pupils compare it with diamond and graphite, explaining its strength and conductivity from its structure. It is also a good bridge into nanoscience because it is a single layer of atoms.
Is the Nanochemistry unit written for GCSE?
No. It is a high school chemistry unit on nanomaterials, listed for Grades 9–12, and it goes beyond GCSE in places. Use its sections on surface area and properties for Year 10 and 11, and keep the more advanced material for stretch or sixth form.
How should pupils calculate surface area to volume ratio?
Pupils should calculate surface area and volume separately, then divide. For a cube of side L, surface area is 6L² and volume is L³, so the ratio is 6 divided by L. Halving the side doubles the ratio, which explains why nanoparticles react so readily.
How long should I spend on bonding and nanoscience?
Eight to ten lessons covers bonding, structure and nanoparticles well, including practice questions. Add two lessons if your pupils need extra time on dot and cross diagrams, which many find harder than expected at the start of Year 10.
